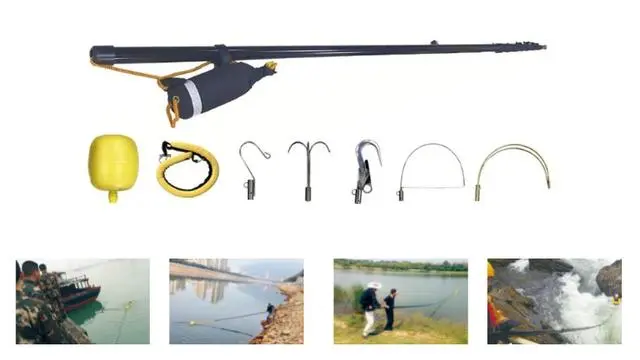

1.1 Scope of application: Suitable for “mud marshes, mountain valleys, docks and ships, flood prone areas, winter ice surfaces, where rescue personnel discover drowning and are trapped in danger
After personnel arrive, carry out remote safety rescue on shore or on board.

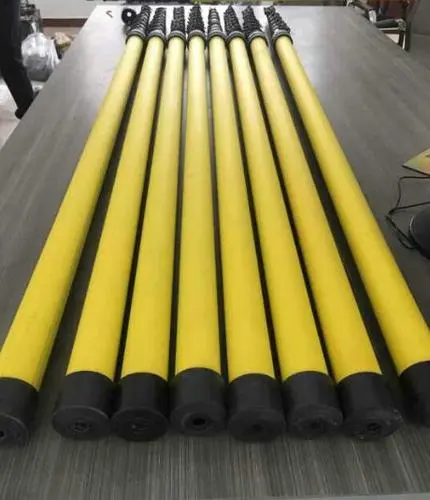

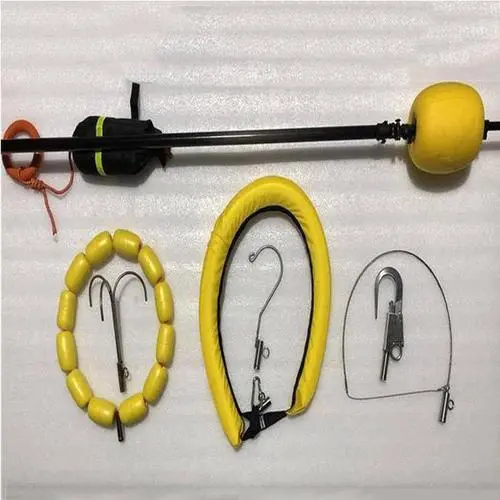

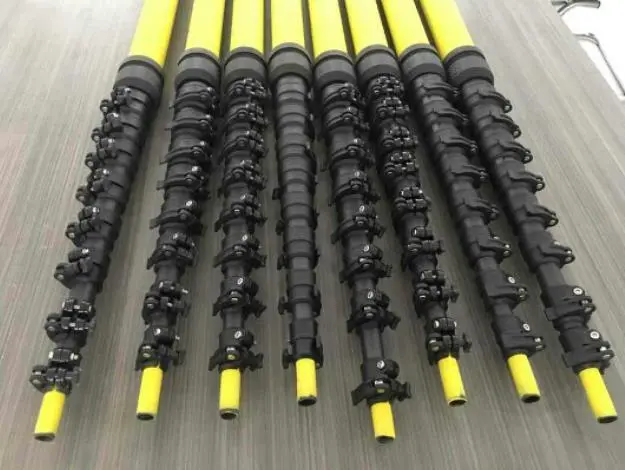

1.2 Specification of Lifebar Combination
1.2.1. Material: Carbon fiber rod, floatable; 1.2.2. Shrinkage length (meters) ≤ 2.6 meters (check the test report)
1.2.3. Unfolding length (meters) ≥ 18 meters (check test report) 1.2.4. Weight (kilograms) ≤ 4.5Kg (check test report)
1.3 Specification of floating ball (check the inspection report)
1.3.1. Increase the buoyancy of the telescopic rod, which can also be used as a standalone buoyancy device; 1.3.2 Material: plastic foam material, yellow color
1.3.3. Weight ≤ 540g
1.3.6. Buoyancy ≥ 7kg
1.4. Specification of buoyancy ring (check the inspection report)
1.4.1 Material: plastic foam material, yellow color
1.4.2 Circle diameter ≥ 520mm
1.4.3 Weight ≤ 540g
1.4.4 Buoyancy ≥ 7kg
1.5. Specification of single hook (check the inspection report)
1.5.1 Material: Stainless Steel
1.5.2 Hook mouth width ≤ 110mm
1.5.3. Length ≥ 315mm
1.5.4. Weight ≤ 225g
1.6. Specification of Hooks (Check Test Report)
1.6.1 Material: Stainless Steel
1.6.2. Hook radius ≥ 115mm
1.6.3. Length ≥ 325mm
1.6.4. Weight ≤ 570g
1.7. Specification of arc-shaped hook (check the inspection report)
